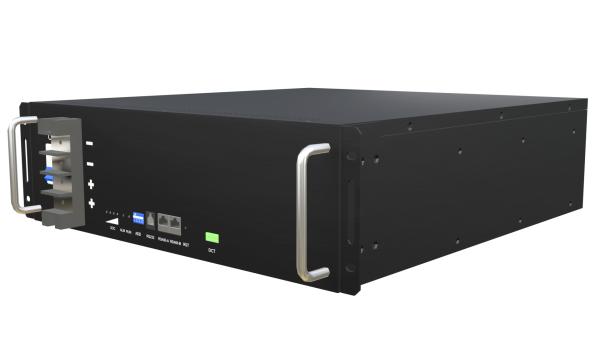

Product Description:
The Hyper 48200 is a high-performance 48V 200Ah (9.6kWh)
rack-mounted lithium iron phosphate (LiFePO₄) battery designed for
commercial and industrial energy storage applications. With its
robust build, long cycle life, and seamless scalability, it’s the
ideal solution for mission-critical backup, off-grid systems, and
hybrid solar integration.
Features:
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah (5120Wh)
- Cell Type: A-Grade LiFePO4, Prismatic 100Ah Cells
- Cycle Life: >6000 cycles for long-term reliability
- Charge/Discharge Current: Max. 100A for both charge and discharge
- Operating Voltage Range: 40V-58.4V
- Communication Interfaces: RS485, CAN
- Battery Management System (BMS): Comprehensive protection for safety and performance
- High Voltage Series & Low Voltage Parallel Connection Support: Flexible for various configurations
- Temperature Range: Charge: 0°C to 55°C; Discharge: -20°C to 55°C
- Dimensions: 442 x 410 x 133 mm (3U)
- Weight: 42kg
- Installation: Easy rack-mount design for convenient integration
- Optional LCD Display: For real-time monitoring (optional)
Technical Parameters:
| Parameter | Value |
|---|
| Rack-Mounted Power Bank | Yes |
| Rack-Mounted Power Supply | Yes |
| Rack-Mounted Energy Source | Yes |
| Max Discharge Current | 100A |
| Dimensions | 442x410x133 3U |
| Weight | 42kg |
| Cycle Life | >6000 Cycles |
| Protection Level | IP65 |
| Voltage | 51.2V |
| Charge Voltage | 51.2V |
| Capacity | 100Ah |
| Discharge Cut-off Voltage | 51.2V |
| Warranty | 5 Years |
Applications:
- Commercial Energy Storage: Ideal for warehouses, factories, and office buildings requiring
dependable power storage.
- Industrial Energy Solutions: Suitable for applications in manufacturing plants, production
lines, and large-scale operations that demand high-performance
batteries.
- Renewable Energy Systems: Perfect for solar and wind energy storage to optimize energy
management and reduce reliance on grid power.
- Backup Power Systems: Provides reliable backup for critical systems and equipment,
ensuring business continuity during power outages.
- Off-Grid Energy Storage: Designed for use in off-grid and hybrid power systems, offering an
efficient and cost-effective energy storage solution.
FAQ:
Q1:What is the expected lifespan of the Hyper 48100 battery?
The Hyper 48100 has a cycle life of more than 6000 cycles, ensuring
long-term performance and reliability for commercial and industrial
applications.
Q2: Can I install multiple Hyper 48100 units in parallel?
Yes, the Hyper 48100 supports both series and parallel connections,
allowing you to scale your energy storage system according to your
needs.
Q3: What is the maximum charge/discharge current of this battery?
The maximum charge and discharge current of the Hyper 48100 is
100A, making it suitable for high-demand applications.
Q4: What temperature ranges can the battery operate in?
The battery operates within a charge temperature range of 0°C to
55°C and a discharge temperature range of -20°C to 55°C.
Q5: Does the Hyper 48100 come with a built-in display?
The battery comes with an optional LCD display for real-time
monitoring of key parameters such as voltage, current, and charge
status.
Q6:What communication interfaces are supported by the Hyper 48100?
The Hyper 48100 supports RS485 and CAN communication interfaces,
allowing for seamless integration into energy management systems.
Q7: What type of cells are used in the Hyper 48100?
The battery uses high-quality A-Grade LiFePO4 prismatic cells,
ensuring safety, efficiency, and long cycle life.
