Product Description:
HORIZON 51.2V100Ah is a high-performance lithium iron phosphate
(LiFePO ₄) battery designed specifically for home energy storage,
industrial and commercial energy storage, and backup power
applications. Its high safety, long lifespan, and high energy
density make it an ideal choice for modern intelligent energy
storage systems.
Advantages and Characteristics:
1,High safety: Using lithium iron phosphate (LiFePO ₄) battery
cells, it has strong thermal stability and eliminates the risk of
thermal runaway.
2, Long lifespan: ≥ 6000 deep cycles, ensuring efficient operation
for 10+years.
3, Intelligent BMS management: Built in intelligent battery
management system (BMS), providing overcharge, overdischarge, and
short circuit protection, improving service life and safety.
4,High protection level: IP65 protection, suitable for complex
environments, can be installed indoors and outdoors.
5,High power output: Supports high current discharge to meet the
demands of high-power loads.
6,Strong compatibility: Supports CAN/RS485 communication protocol
and adapts to mainstream photovoltaic inverters in the market.
7, Modular Expansion: Supports parallel expansion and flexible
combination of energy storage systems with different capacities.
application area

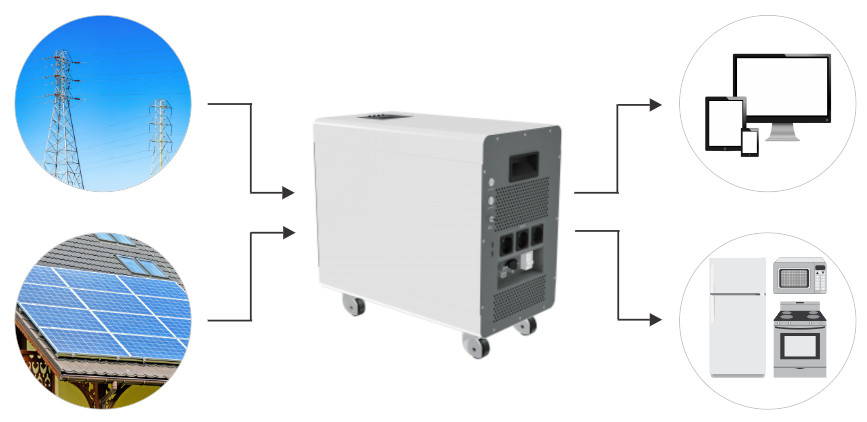

1, Home energy storage: matched with photovoltaic systems,
optimizing the proportion of self use and reducing electricity
costs.
2, Industrial and commercial energy storage: improve energy
utilization efficiency, reduce peak and valley electricity price
costs, and optimize load management.
3, Backup power supply: provides stable power to prevent power
outages from affecting the operation of critical equipment.
4, Off grid system: suitable for remote areas or areas without
power grid coverage, ensuring all-weather power supply.
technical specifications:
Electrical performance
Rated voltage: 51.2V
Rated capacity: 100Ah
Energy storage capacity: 5.12kWh
Charge and discharge efficiency: ≥ 95%
Maximum charging current: 100A
Maximum discharge current: 100A
Charging cut-off voltage: 58.4V
Discharge cut-off voltage: 44.8V
Environmental requirements
Working temperature:- 10℃ ~ 55℃
Storage temperature:- 20℃ ~ 45℃
Relative humidity: 5%~95% (without condensation)
Operating altitude: ≤ 2000m
Physical parameters
Dimensions: 482mm × 450mm × 222mm
Weight: Approximately 45kg
Protection level: IP65
Chassis material: High strength metal shell
Communication and compatibility
Communication interface: CAN / RS485
Compatible devices: mainstream photovoltaic inverters/household and
industrial energy storage systems
Parallel Expansion: Supports multi module parallel connection and
flexible expansion
Technical Parameters:
| Parameter | Value |
|---|
| Inverter Peak power | 5KW |
| Nominal capacity (kwh) | 5KWh |
| Battery Parameters | 51.2V100Ah |
| Inverter Input/Output AC voltage frequency | 50Hz/60Hz |
| Color | Black/White |
| Dimension (mm) | 710x300x600mm |
| Discharge temperature range | -20~65°C |
| Inverter Rated power | 3.2KW |
| Battery Cell | 3.2v100Ah |
| Installation method | Floor Type With Wheels |
Packing and Shipping:
Packaging and Shipping
The Home Energy Storage System is packaged in a robust box, with
each component securely placed in an individual compartment.
The package is shipped via an insured courier service and includes
a tracking number. Delivery is expected to take 3-5 business days.
FAQ:
Q1: What is the brand name of this Home Energy Storage System?
A1: The brand name of this Home Energy Storage System is HelithTech.
Q2: What is the model number of this Home Energy Storage System?
A2: The model number of this Home Energy Storage System is HORIZON
51.2V100Ah.
Q3: Where is this Home Energy Storage System made?
A3: This Home Energy Storage System is made in China.
Q4: What type of batteries does this Home Energy Storage System
use?
A4: This Home Energy Storage System uses lithium-ion batteries.
Q5: How much energy storage does this Home Energy Storage System
provide?
A5: This Home Energy Storage System provides 51.2V100Ah of energy
storage.
